DGAT056BDE REPAIR PARTS
DGAT056BDE REPAIR PARTS

DGAT056BDE REPAIR PARTS

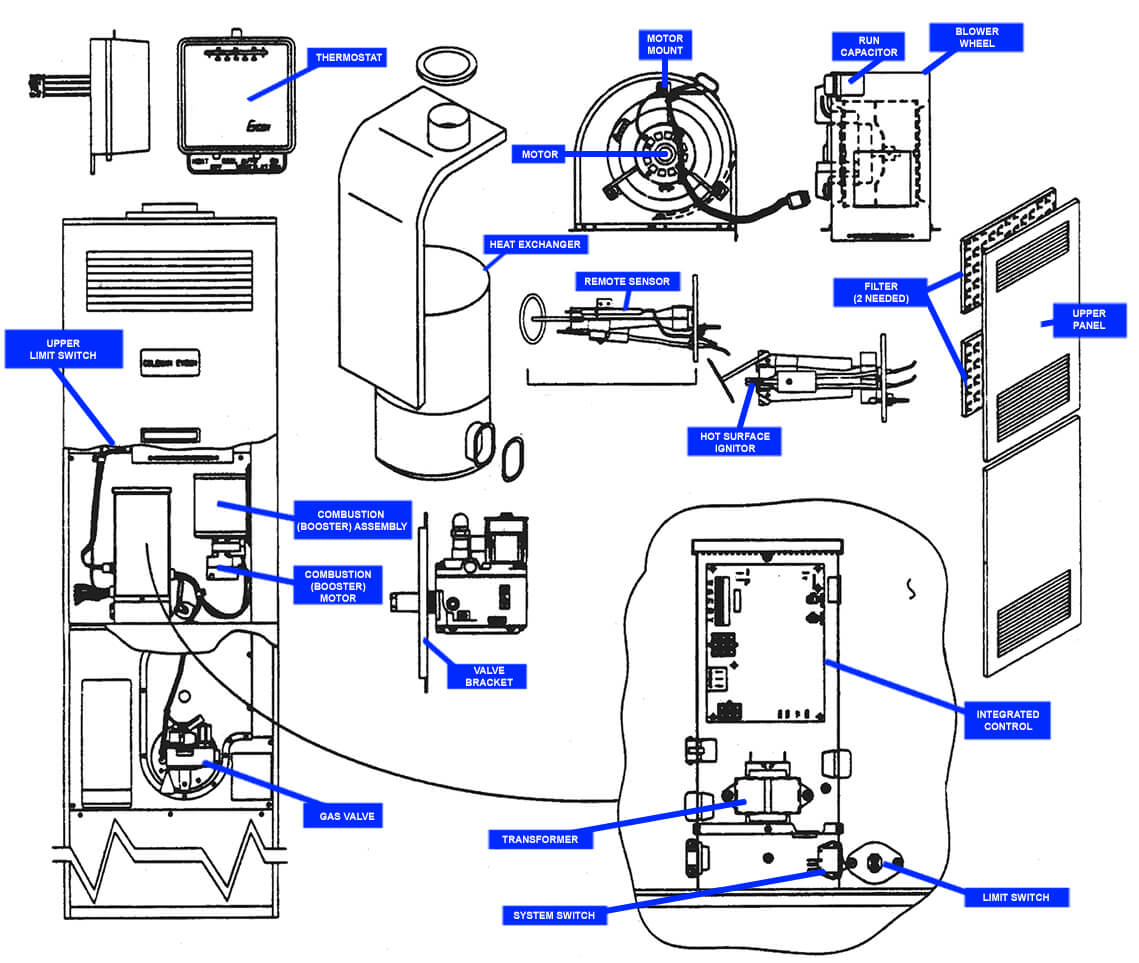

Click on the red circles in the diagram below to find your parts.

Burner Orifices:
Natural: Part# 079951.1361
L.P.: Part# 079951.0821

DGAM, DGAT & DLAS Series Furnace List Parts

DESCRIPTION

USED ON MODEL

MFG #

CAPITOL #

Pressure Switch

All

Casing Top

All

S1-7945-116/C

Limit Switch, Manual (Upper)

All

S1-7990-3591

77990.3591

Assembly, Booster (w/Motor)(Style E)

All

S1-7990-6451

77990.6451

Assembly, Booster (w/Motor)(Style F)

All

S17990-6501

77990.6501

Booster Motor (Style E)

All

S1-7990-317P

077990.317P

Booster Motor (Style F)

All

S1-7990-314P

07990.314P

Cover, Control Box

All

S1-7990-401

Integrated Control (Style E)

All

S1-7990-319P

077990.319P

Integrated Control (Style F)

All

S1-03101910000

7.03102E+11

Gas Valve

All

S1-7990-328P

7.02543E+11

Valve Bracket

All

S1-7945-5151/C

077945B5151

Panel, Coil Cavity (E Style)

All

S1-7956A5201

Thermostat

All

S1-7990-386P

113110.350P

Gasket Package, Heat Exchanger

All

S1-7945-3011

Heat Exchanger w/Gaskets

All

S1-37323736001

77995.5751

Remote Sensor

All

S1-7975-3881

077975.388P/A

System Switch

All

S1-7970-3331

77681.3301

Field Wiring Cover

All

S1-7990-402

Transformer

All

S1-2940S3541

072940A3541

Limit Switch (Open-140, Close-110)

56

S1-7945-3281/A

7.02535E+11

Limit Switch (Open-145, Close-115)

070, 075

S1-7970-3281/A

077970.3281/A

Limit Switch (Open-150, Close-120)

90

S1-7995-3281/A

077995.3281/A

Burner Assy (less gas valve)

S1-7970-5851/A

Hot Surface Ignitor

S1-1474-0521

7.02541E+11

Ignitor Sheild

All

S1-7970-179

Mounting Plate (Burner)

All

S1-7945-1631/A

Filter (16x20x1, 2 Req'd)

All

S1-1214-2511

71214.2511

Panel, Upper

DGAM

S1-7975-1561/B

Panel, Upper

DLAS, DGAT

S1-7990-1561/A

077990A1561

Panel, Lower

DGAM, DGAT

S1-7956-1571/A

Panel, Upper

DLAS

S1-7956-1631/A

Blower Motor (DGAM)

056, 075

S1-1468-220P

071468.220P

Blower Motor (DGAT, DLAS)

056, 070, 075

S1-7966-311P

077966.311P

Blower Motor (DGAT, DLAS)

90

S1-1468-212P

071468.212P

Blower Housing

All

S1-7966S530

Motor Mount (3/pkg.)

All

S1-2702-4091

72702.4091

Connector Plug

All

S1-7680-348

Motor Clamp

All

S1-7670-6391

Run Capacitor (DGAM)

056, 075

S1-1499-4471

Run Capacitor (DGAT)

90

S1-1499-4461

7.0242E+11

Run Capacitor (DLAS)

Blower Wheel

All

S1-1472-2751

7.02624E+11

Burner Orifice (Nat)

56

S1-9951-1361

79951.1361

Burner Orifice (Nat)

70

S1-9951-1541

79951.1541

Burner Orifice (Nat)

75

S1-9951-1611

79951.1611

Burner Orifice (Nat)

90

S1-9951-1801

79951.1801

Burner Orifice (LP)

56

S1-9951-0821

79951.0821

Burner Orifice (LP)

70

S1-9951-0931

79951.0931

Burner Orifice (LP)

75

S1-9951-0981

79951.0981

Burner Orifice (LP)

90

S1-9951-1061

79951.1061

Pressure Switch Tubing

All

S1-02811957000

7.02812E+11
